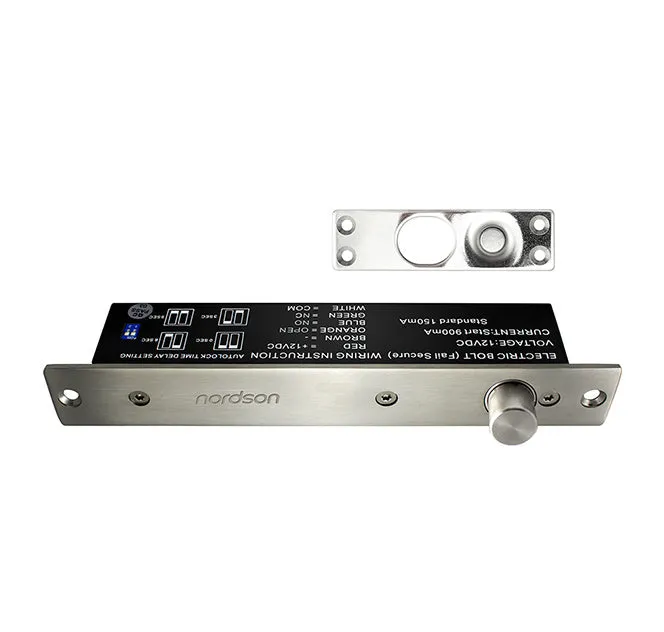

Nordson NI-500A Fail Secure Sturdy Electric Bolt
Fail-secure type:Power to open
Voltage: DC12V
Start Current: 900mA Standby Current: 120mA
Face Plate: 215L*35W*38H(mm)
Strike Plate : 100L*25W*3W(mm)
Bolt :16mm DIA,stainless steel 16mm throw
Solid Bolt: Polishing housing, 2000Kg Holding Force
Signal Output Door status Output,NO/NC/COM
Suitable for: Wooden Door,Glass Door,Metal Door
Autolock Time Delay: 0,3,6,9sec.
Weight: 1kg
Voltage: DC12V
Start Current: 900mA Standby Current: 120mA
Face Plate: 215L*35W*38H(mm)
Strike Plate : 100L*25W*3W(mm)
Bolt :16mm DIA,stainless steel 16mm throw
Solid Bolt: Polishing housing, 2000Kg Holding Force
Signal Output Door status Output,NO/NC/COM
Suitable for: Wooden Door,Glass Door,Metal Door
Autolock Time Delay: 0,3,6,9sec.
Weight: 1kg
SPECIFICATION
| Version | Fail locked(the bolt is locked when the current is off) |
| Diameter dead bolt | ø16mm,16mm(full solid stainless steel) |
| Shear strength | 4500Lbs/2000kg |
| Relock Delay Timer | 0,3,6 seconds open time delay is adjustable |
| Push Button Contact | Door Open Push Button Input Contact |
| Door Status Sensors | Dry contact NO,NC,COM |
| Rated Operating Voltage | DC 12V or 24V (Customization Available) |
| Start Current | 1200mA |
| Standby Current | 200mA |
| Optional Functions | LED,Buzzer,Lock Sensors |
| Face place material | High Aluminum |
| Surface Temp | Low Temperature |
| Ambient temperature in °C | -10°C - 55°C |
| Suitable for | Wooden & Aluminum & Glass & Fireproof &Metal door |
| Face Plate Dimensions(L x W x D) | 205Lx30WX38H(mm) |
| Strike Plate Dimensions(L x W x D) | 100Lx25Wx2.5W(mm) |
| Weight in kg | 1.0kg |
NI-500 Sturdiness Electronic Bolt Lock, including Fail-safe and fail secure 2 types .Built individually controlled solenoid valve, High security locks suit for framed glass doors, wooden doors, metal doors, fire doors. Lock body are made of 304ss high hardness, corrosion resistant stainless steel, all solid lock withstand 4500 pounds linear positive impact, Special photoelectric control ultra-low temperature, low efficacy,Safe and reliable energy saving. Attached accessories for frameless glass door and narrow panel door.
